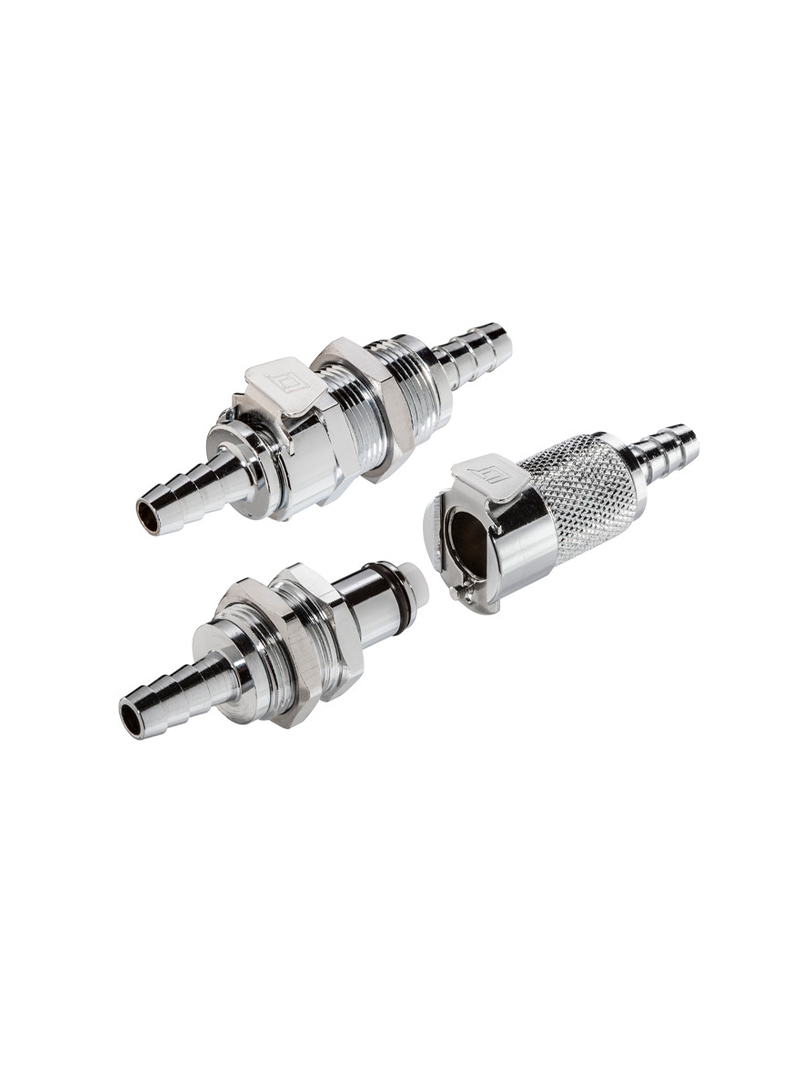

40CB Coupling
 40 Series - 1/4" Flow Size

음식용 등급의 크롬 도금 동으로 제작된 1/8" 유량 용량을 가진 이 커플링은 내구성이 더 좋으며  더 높은 압에 버팁니다.


내부 셧오프 밸브가 포함되거나 포함되지 않은 상태로 공급 가능합니다.


모든 40CB 커플링은 모든 다른 비슷한 엄지 누르개 타입 커플링 뿐만 아니라

40AC나 40PP 커플링과 상호 체결이 가능합니다.

ㅣ성능범위 & 재질 및 구조

40CB Coupling

성능 범위
작동 압력
진공에서 250psi(17.3bar)까지
온도
-40°C ~ 82°C
유량 용량
1/4"
 재질 및 구조
몸통과 끝단
음식용 등급의 크롬/동
내부 밸브
아세탈 (POM)
내부 밸브 스프링
316 스테인레스 철
오링
FDA 및 NSF 등급의 Buna-N (다른 재질 사용 가능)
엄지 누르개
스테인레스 철
외부 스프링 및 핀
스테인레스 철

ㅣ공기 & 물 유량

40CB 공기유량
40CB 물유량


Q = 분당 갤런 단위 유량

Cv = 평균 유량

ΔP =  커플링 통과 압력 차

S = 액체의 비중


* 유량의 범위

아래 데이터는 LinkTech 커플링의 액체 유량을 나타냅니다. 각각의 커플링 조합은 실온(21°C)에서 테스트 되었습니다.

40CB Series Coupling - Cv 값

Socket
40CBV-PB2-04
40CB-PB2-04
40CBV-PB2-06
40CB-PB2-06
40CBV-PB9-04
40CB-PB9-04
40CBV-SB2-04
0.42
0.58
0.45
0.78
0.31
0.38
40CB-S2-04
0.52
0.95
0.70
1.00
0.38
0.39
40CBV-SB2-06
0.43
0.63
0.50
0.89
0.33
0.39
40CB-S2-06
0.53
0.95
0.80
1.40
0.38
0.39
40CBV-SB3-04
0.42
0.58
0.45
0.78
0.31
0.38
40CB-S3-04
0.52
0.95
0.70
1.00
0.38
0.39
40CBV-SB3-06
0.43
0.63
0.50
0.89
0.33
0.39
40CB-S3-06
0.53
0.95
0.80
1.40
0.38
0.39
40CBV-SB1-04
0.41
0.65
0.50
0.81
0.31
0.35
40CB-S1-04
0.56
0.84
0.83
1.40
0.35
0.40
40CBV-SB1-06
0.43
0.70
0.50
1.03
0.30
0.36
40CB-S1-06
0.57
0.84
0.82
1.40
0.35
0.40
　
Socket
40CBV-PB9-06
40CB-PB9-06
40CBV-PB1-04
40CB-PB1-04
40CBV-PB1-06
40CB-PB1-06
40CBV-SB2-04
0.45
0.60
0.43
0.79
0.45
0.75
40CB-S2-04
0.55
0.87
0.65
0.95
0.65
1.00
40CBV-SB2-06
0.62
0.50
0.45
0.95
0.50
0.92
40CB-S2-06
0.57
1.00
0.70
1.40
0.73
1.40
40CBV-SB3-04
0.45
0.60
0.43
0.79
0.45
0.75
40CB-S3-04
0.55
0.87
0.65
0.95
0.65
1.00
40CBV-SB3-06
0.62
0.50
0.45
0.95
0.50
0.92
40CB-S3-06
0.57
1.00
0.70
1.40
0.73
1.40
40CBV-SB1-04
0.48
0.74
0.45
0.80
0.45
0.80
40CB-S1-04
0.58
1.04
0.75
1.40
0.78
1.40
40CBV-SB1-06
0.70
0.48
0.45
0.97
0.48
1.00
40CB-S1-06
0.60
1.05
0.75
1.40
0.75
1.40


Panel Mount Size
　
Panel Opening
Max Panel Thickness
Min Panel Thickness
Socket
0.688"
0.5"
0.05"
Plug
0.688"
0.3"
0.05"


Panel Nut Hex Size
Panel Nut Thread
13/16"
11/16"-24UNS


ㅣ40CB Series Socket

  1. Male Thread Socket



Non-Valved
Valved
Thread Size
Length
Width
Height
40CB-S1-04
40CBV-SB1-04
1/4"NPT
1.15"
0.86"
0.90"
40CB-S1-04BSPT
40CBV-SB1-04BSPT
1/4"BSPT
1.15"
0.86"
0.90"
40CB-S1-06
40CBV-SB1-06
3/8"NPT
1.15"
0.86"
0.90"
40CB-S1-06BSPT
40CBV-SB1-06
3/8"BSPT
1.15"
0.86"
0.90"

 2. In-Line Hose Barb Socket




Non-Valved
Valved
Tube Size
Metric Tube
Length
Width
Height
40CB-S2-04
40CBV-SB2-04
1/4" ID
6.4mm ID
1.95"
0.75"
0.90"
40CB-S2-05
40CBV-SB2-05
5/16" ID
7.9mm ID
2.00"
0.75"
0.90"
40CB-S2-06
40CBV-SB2-06
3/8" ID
9.5mm ID
2.00"
0.75"
0.90"

 3. In-Line PTF Socket



Non-Valved
Valved
Tube Size
Metric Tube
Length
Width
Height
40CB-S9-04
40CBV-SB9-04
1/4" OD, 0.17" ID
6.4mm OD, 4.3mm ID
1.87"
0.75"
0.90"
40CB-S9-06
40CBV-SB9-06
3/8" OD, 1/4" ID
9.5mmOD, 6.4mm ID
1.95"
0.75"
0.90"

4. Panel Mount Hose Barb Socket



Non-Valved
Valved
Tube Size
Metric Tube
Length
Width
Height
40CB-S3-04
40CBV-SB3-04
1/4" ID
6.4mm ID
1.95"
0.86"
0.90"
40CB-S3-05
40CBV-SB3-05
5/16" ID
7.9mm ID
2.00"
0.86"
0.90"
40CB-S3-06
40CBV-SB3-06
3/8" ID
9.5mm ID
2.00"
0.86"
0.90"

5. Panel Mount PTF Socket



Non-Valved
Valved
Tube Size
Metric Tube
Length
Width
Height
40CB-S8-04
40CBV-SB8-04
1/4" OD, 0.17" ID
6.4mm OD, 4.3mm ID
1.87"
0.86"
0.90"
40CB-S8-06
40CBV-SB8-06
3/8" OD, 1/4" ID
9.5mmOD, 6.4mm ID
1.95"
0.86"
0.90"

6. Panel Mount Male Thread Socket



Non-Valved
Valved
Thread Size
Length
Width
Height
40CB-S12-04
40CBV-SB12-04
1/4" NPT
0.87"
0.90"
0.80"

7. Female Thread Socket



Non-Valved
Valved
Thread Size
Length
Width
Height
40CB-S13-04
40CBV-SB13-04
1/4" NPT
1.15"/1.68"
0.87"
0.90"

8. Male Thread Socket (Gasket Seal Included)



Non-Valved
Thread Size
Length
Width
Height
40CB-S3557
15/16-27
1.23"
0.95"
0.99"
40CB-S3562
M24 X 1
1.23"
0.95"
0.99"

9. Female Thread Socket (Gasket Seal Included)



Non-Valved
Thread Size
Length
Width
Height
40CB-S3559
55/64-27
1.21"
0.97"
1.01"
40CB-S3564
M22 X 1
1.21"
0.97"
1.01"

ㅣ40CB Series Plugs

1. Male Thread Plug



Non-Valved
Valved
Thread Size
Length(nv/v)
Width
Height
40CB-PB1-04
40CBV-PB1-04
1/4"NPT
1.25"/1.55"
0.63"
0.63"
40CB-PB1-04BSPT
40CBV-PB1-04BSPT
1/4"BSPT
1.25"/1.55"
0.63"
0.63"
40CB-PB1-06
40CBV-PB1-06
3/8"NPT
1.25"/1.55"
0.75"
0.75"
40CB-PB1-06BSPT
40CBV-PB1-06BSPT
3/8"BSPT
1.25"/1.55"
0.75"
0.75"

2. Female Thread Plug



Non-Valved
Valved
Thread Size
Length(nv/v)
Width
Height
40CB-PB13-04
40CBV-PB13-04
1/4"NPT
1.25"/1.90"
0.63"
0.63"

3. In-Line PTF Plug



Non-Valved
Valved
Tube Size
Metric Tube
Length(nv/v)
Width
Height
40CB-PB9-04
40CBV-PB9-04
1/4" OD, 0.17" ID
6.4mm OD, 4.3mm ID
1.21"/1.92"
0.63"
0.63"
40CB-PB9-06
40CBV-PB9-06
3/8" OD, 1/4" ID
9.5mmOD, 6.4mm ID
1.34"/2.05"
0.63"
0.63"

4. In-Line Hose Barb Plug



Non-Valved
Valved
Tube Size
Metric Tube
Length(nv/v)
Width
Height
40CB-PB2-04
40CBV-PB2-04
1/4" ID
6.4mm ID
1.30"/0.85"
0.63"
0.63"
40CB-PB2-05
40CBV-PB2-05
5/16" ID
7.9mm ID
1.30"/0.85"
0.63"
0.63"
40CB-PB2-06
40CBV-PB2-06
3/8" ID
9.5mm ID
1.30"/0.85"
0.63"
0.63"

5.  Panel Mount Hose Barb Plug



Non-Valved
Valved
Tube Size
Metric Tube
Length(nv/v)
Width
Height
40CB-PB3-04
40CBV-PB3-04
1/4" ID
6.4mm ID
1.92"/2.06"
0.75"
0.75"
40CB-PB3-05
40CBV-PB3-05
5/16" ID
7.9mm ID
1.96"/2.10"
0.75"
0.75"
40CB-PB3-06
40CBV-PB3-06
3/8" ID
9.5mm ID
1.94"/2.08"
0.75"
0.75"

6. Panel Mount PTF Plug



Non-Valved
Valved
Tube Size
Metric Tube
Length(nv/v)
Width
Height
40CB-PB8-04
40CBV-PB8-04
1/4" OD, 0.17" ID
6.4mm OD, 4.3mm ID
1.82"/1.95"
0.75"
0.75"
40CB-PB8-06
40CBV-PB8-06
3/8" OD, 1/4" ID
9.5mmOD, 6.4mm ID
1.91"/2.05"
0.75"
0.75"

7. Elbow Hose Barb Plug



Non-Valved
Valved
Tube Size
Metric Tube
Length(nv/v)
Width
Height
40CB-PB4-04
40CBV-PB4-04
1/4" ID
6.4mm ID
1.28"/1.43"
0.63"
1.28"
40CB-PB4-06
40CBV-PB4-06
3/8" ID
9.5mm ID
1.28"/1.43"
0.63"
1.28"

8. Elbow PTF Plug



Non-Valved
Valved
Tube Size
Metric Tube
Length(nv/v)
Width
Height
40CB-PB10-04
40CBV-PB10-04
1/4" OD, 0.17" ID
6.4mm OD, 4.3mm ID
1.29"/1.43"
0.63"
1.28"
40CB-PB10-06
40CBV-PB10-06
3/8" OD, 1/4" ID
9.5mmOD, 6.4mm ID
1.29"/1.43"
0.63"
1.28"

9. Panel Mount Hose Barb Plug, Non Rotational



Non-Valved
Valved
Tube Size
Metric Tube
Length(nv/v)
Width
Height
40CB-PB20-04
40CBV-PB20-04
1/4" ID
6.4mm ID
1.92"/2.06"
0.75"
0.75"
40CB-PB20-05
40CBV-PB20-05
5/16" ID
7.9mm ID
1.96"/2.10"
0.75"
0.75"
40CB-PB20-06
40CBV-PB20-06
3/8" ID
9.5mm ID
1.94"/2.08"
0.75"
0.75"

10. Panel Mount PTF Plug, Non Rotational



Non-Valved
Valved
Tube Size
Metric Tube
Length(nv/v)
Width
Height
40CB-PB21-04
40CBV-PB21-04
1/4" OD, 0.17" ID
6.4mm OD, 4.3mm ID
1.82"/1.95"
0.75"
0.75"
40CB-PB21-06
40CBV-PB21-06
3/8" OD, 1/4" ID
9.5mmOD, 6.4mm ID
1.91"/2.05"
0.75"
0.75"
