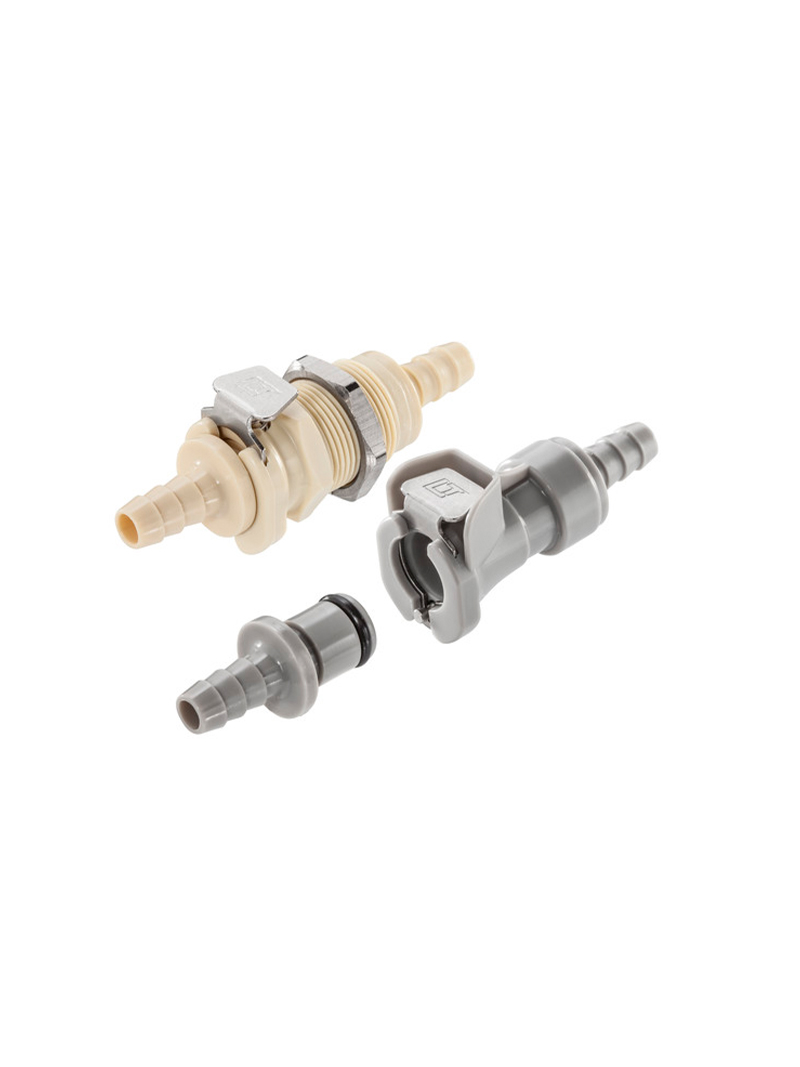

40PP 공기유량 |
 |
40PP 물유량 |
 |
40PP 온도유량 |
Q = 분당 갤런 단위 유량
Cv = 평균 유량
ΔP = 커플링 통과 압력 차
S = 액체의 비중
* 유량의 범위
아래 데이터는 LinkTech 커플링의 액체 유량을 나타냅니다. 각각의 커플링 조합은 실온(21°C)에서 테스트 되었습니다.
1. Male Thread Socket
Non-Valved | Valved | Thread Size | Length | Width | Height |
40PP-S1-04 | 40PPV-SE1-04 | 1/4"NPT | 1.16" | 0.76" | 1.04" |
40PP-S1-04MALD | 40PPV-SE1-04MALD | 1/4"NPT | 1.16" | 0.76" | 1.04" |
40PP-S1-06 | 40PPV-SE1-06 | 3/8"NPT | 1.16" | 0.76" | 1.04" |
40PP-S1-06MALD | 40PPV-SE1-06MALD | 3/8"NPT | 1.16" | 0.76" | 1.04" |
2. In-Line Hose Barb Socket
Non-Valved | Valved | Tube Size | Metric Tube | Length | Width | Height |
40PP-S2-04 | 40PPV-SE2-04 | 1/4" ID | 6.4mm ID | 1.90" | 0.76" | 1.04" |
40PP-S2-04MALD | 40PPV-SE2-04MALD | 1/4" ID | 6.4mm ID | 1.90" | 0.76" | 1.04" |
40PP-S2-06 | 40PPV-SE2-06 | 3/8" ID | 9.5mm ID | 1.90" | 0.76" | 1.04" |
40PP-S2-06MALD | 40PPV-SE2-06MALD | 3/8" ID | 9.5mm ID | 1.90" | 0.76" | 1.04" |
3. In-Line PTF Socket
Non-Valved | Valved | Tube Size | Metric Tube | Length | Width | Height |
40PP-S9-06 | 40PPV-SE9-06 | 3/8" OD, 1/4" ID | 9.5mmOD, 6.4mm ID | 1.95" | 0.76" | 1.04" |
40PP-S9-06MALD | 40PPV-SE9-06MALD | 3/8" OD, 1/4" ID | 9.5mmOD, 6.4mm ID | 1.95" | 0.76" | 1.04" |
4. Panel Mount Hose Barb Socket
Non-Valved | Valved | Tube Size | Metric Tube | Length | Width | Height |
40PP-S3-04 | 40PPV-SE3-04 | 1/4" ID | 6.4mm ID | 1.90" | 0.86" | 1.04" |
40PP-S3-04MALD | 40PPV-SE3-04MALD | 1/4" ID | 6.4mm ID | 1.90" | 0.86" | 1.04" |
40PP-S3-06 | 40PPV-SE3-06 | 3/8" ID | 9.5mm ID | 1.90" | 0.86" | 1.04" |
40PP-S3-06MALD | 40PPV-SE3-06MALD | 3/8" ID | 9.5mm ID | 1.90" | 0.86" | 1.04" |
5. Panel Mount PTF Socket
Non-Valved | Valved | Tube Size | Metric Tube | Length | Width | Height |
40PP-S8-06 | 40PPV-SE8-06 | 3/8" OD, 1/4" ID | 9.5mmOD, 6.4mm ID | 1.95" | 0.86" | 1.04" |
40PP-S8-06MALD | 40PPV-SE8-06MALD | 3/8" OD, 1/4" ID | 9.5mmOD, 6.4mm ID | 1.95" | 0.86" | 1.04" |
1. Male Thread Plug
Non-Valved | Valved | Thread Size | Length(nv/v) | Width | Height |
40PPX-PE1-04 | 40PPV-SE1-04 | 1/4"NPT | 1.50"/1.65" | 0.63" | 0.63" |
40PPX-PE1-04MALD | 40PPV-SE1-04MALD | 1/4"NPT | 1.50"/1.65" | 0.63" | 0.63" |
2. In-Line Hose Barb Plug
Non-Valved | Valved | Tube Size | Metric Tube | Length(nv/v) | Width | Height |
40PP-PE2-04 | 40PPV-SE2-04 | 1/4" ID | 6.4mm ID | 1.25"/1.94" | 0.70" | 0.70" |
40PP-PE2-04MALD | 40PPV-SE2-04MALD | 1/4" ID | 6.4mm ID | 1.25"/1.94" | 0.70" | 0.70" |
40PP-PE2-06 | 40PPV-SE2-06 | 3/8" ID | 9.5mm ID | 1.25"/1.83" | 0.70" | 0.70" |
40PP-PE2-06MALD | 40PPV-SE2-06MALD | 3/8" ID | 9.5mm ID | 1.25"/1.83" | 0.70" | 0.70" |
3. In-Line PTF Plug
Non-Valved | Valved | Tube Size | Metric Tube | Length(nv/v) | Width | Height |
40PPX-PE9-06 | 40PPV-SE9-06 | 3/8" OD, 1/4" ID | 9.5mmOD, 6.4mm ID | 1.68"/1.83" | 0.63" | 0.63" |
40PPX-PE9-06MALD | 40PPV-SE9-06MALD | 3/8" OD, 1/4" ID | 9.5mmOD, 6.4mm ID | 1.68"/1.83" | 0.63" | 0.63" |
4. Panel Mount Hose Barb Plug
Non-Valved | Valved | Tube Size | Metric Tube | Length(nv/v) | Width | Height |
40PP-PE3-04 | 40PPV-PE3-04 | 1/4" ID | 6.4mm ID | 1.85"/2.00" | 0.75" | 0.75" |
40PP-PE3-04MALD | 40PPV-PE3-04MALD | 1/4" ID | 6.4mm ID | 1.85"/2.00" | 0.75" | 0.75" |
40PP-PE3-06 | 40PPV-PE3-06 | 3/8" ID | 9.5mm ID | 1.85"/2.00" | 0.75" | 0.75" |
40PP-PE3-06MALD | 40PPV-PE3-06MALD | 3/8" ID | 9.5mm ID | 1.85"/2.00" | 0.75" | 0.75" |
5. Elbow Hose Barb Plug
Non-Valved | Valved | Tube Size | Metric Tube | Length(nv/v) | Width | Height |
40PPX-PE4-04 | 40PPV-PE4-04 | 1/4" ID | 6.4mm ID | 1.20"/1.35" | 0.63" | 1.30" |
40PPX-PE4-04MALD | 40PPV-PE4-04MALD | 1/4" ID | 6.4mm ID | 1.20"/1.35" | 0.63" | 1.30" |
40PPX-PE4-06 | 40PPV-PE4-06 | 3/8" ID | 9.5mm ID | 1.20"/1.35" | 0.63" | 1.30" |
40PPX-PE4-06MALD | 40PPV-PE4-06MALD | 3/8" ID | 9.5mm ID | 1.20"/1.35" | 0.63" | 1.30" |
6. Elbow PTF Plug
Non-Valved | Valved | Tube Size | Metric Tube | Length(nv/v) | Width | Height |
40PPX-PE10-06 | 40PPV-PE10-06 | 3/8" OD, 1/4" ID | 9.5mmOD, 6.4mm ID | 1.20"/1.35" | 0.63" | 1.30" |
40PPX-PE10-06MALD | 40PPV-PE10-06MALD | 3/8" OD, 1/4" ID | 9.5mmOD, 6.4mm ID | 1.20"/1.35" | 0.63" | 1.30" |
