50PP 공기유량 |
 |
50PP 물유량 |
 |
50PP 온도유량 |
Q = 분당 갤런 단위 유량
Cv = 평균 유량
ΔP = 커플링 통과 압력 차
S = 액체의 비중
* 유량의 범위
아래 데이터는 LinkTech 커플링의 액체 유량을 나타냅니다. 각각의 커플링 조합은 실온(21°C)에서 테스트 되었습니다.

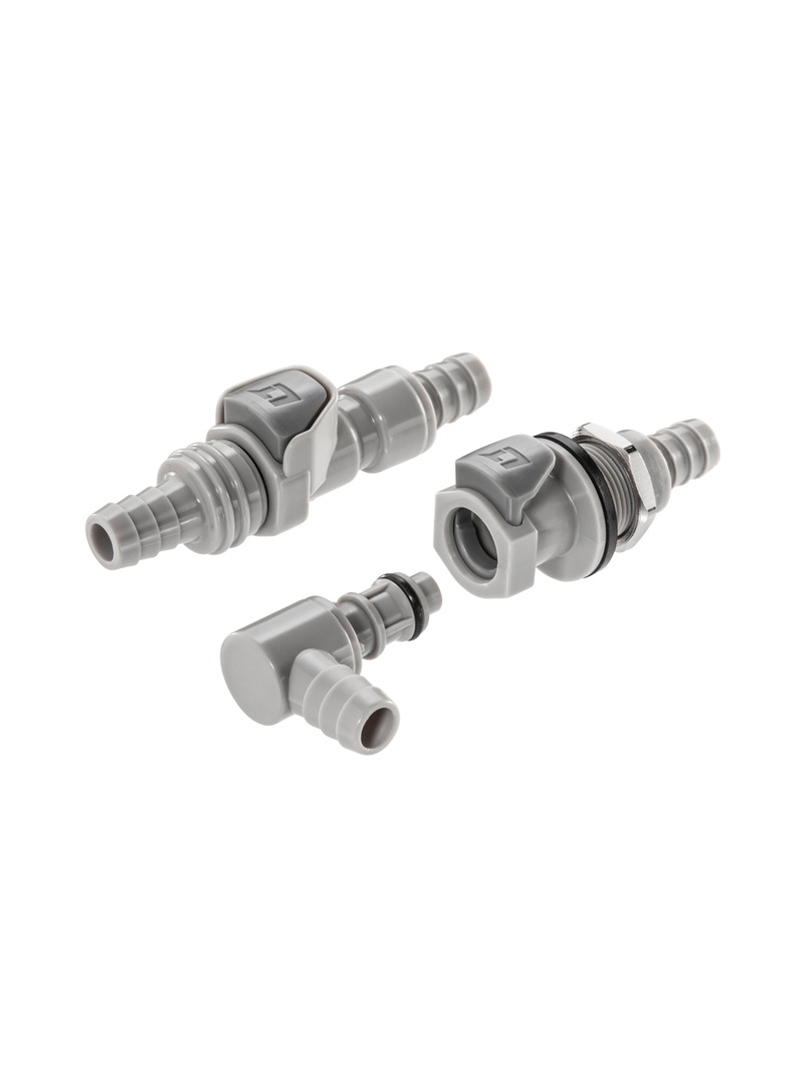

1. In-Line Hose Barb Socket
Non-Valved | Tube Size | Metric Tube | Length | Width | Height |
50PPV-SE2-04 | 1/4" ID | 6.4mm ID | 2.01" | 0.76" | 0.94" |
50PPV-SE2-06 | 3/8" ID | 9.5mm ID | 2.01" | 0.76" | 0.94" |
2. Panel Mount Hose Barb Socket (Gasket Seal Included)
Valved | Tube Size | Metric Tube | Length | Width | Height |
50PPV-SE3-04 | 1/4" ID | 6.4mm ID | 2.14" | 1.00" | 0.94" |
50PPV-SE3-06 | 3/8" ID | 9.5mm ID | 2.14" | 1.00" | 0.94" |
3. Panel Mount Socket Sealing Gasket
Part No | Material | O.D. | Thickness |
C11376 | EPDM | 1.00" OD | 0.08" |
1. Male Thread Plug
Non-Valved | Valved | Thread Size | Length(nv/v) | Width | Height |
50PPX-PE1-04 | 50PPV-PE1-04 | 1/4" NPT | 1.75" | 0.63" | 0.63" |
50PPX-PE1-06 | 50PPV-PE1-06 | 3/8" NPT | 1.75" | 0.75" | 0.75" |
2. In-Line Hose Barb Plug
Non-Valved | Valved | Tube Size | Metric Tube | Length(nv/v) | Width | Height |
50PPX-PE2-04 | 50PPV-PE2-04 | 1/4" ID | 6.4mm ID | 1.89"/2.04" | 0.70" | 0.70" |
50PPX-PE2-06 | 50PPV-PE2-06 | 3/8" ID | 9.5mm ID | 1.76"/1.91" | 0.70" | 0.70" |
3. Elbow Hose Barb Plug
Non-Valved | Valved | Tube Size | Metric Tube | Length(nv/v) | Width | Height |
50PPX-PE4-04 | 50PPV-PE4-04 | 1/4" ID | 6.4mm ID | 1.29"/1.44" | 0.63" | 1.23" |
50PPX-PE4-06 | 50PPV-PE4-06 | 3/8" ID | 9.5mm ID | 1.33"/1.48" | 0.63" | 1.23" |
