HOME > Fitting&Connecter > JACO Compression > 50 Union & Reducing Elbows
| |

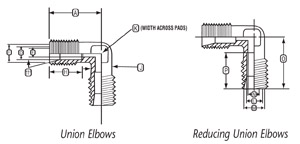

| Tube O.D. | Thread | A ±1/64 | D +.005/-.010 | E | F ±1/64 | H ±1/64 | J ±1/64 | K ±1/64 | Part No. |
| 1/4" | 7/16-20 | 13/16 | 1/4" | .330 - .335 | .170 | 15/32 | 3/8 | 3/8 | 50-4 |
| 5/16" | 1/2-20 | 29/32 | 5/16" | .380 - .385 | .232 | 31/64 | 7/16 | 7/16 | 50-5 |
| 3/8" | 5/8-20 | 15/16 | 3/8" | .460 - .465 | .250 | 19/32 | 9/16 | 9/16 | 50-6 |
| 1/2" | 3/4-20 | 1-1/16 | 1/2" | .590 - .595 | .375 | 11/16 | 11/16 | 45/64 | 50-8 |
| 5/8" | 7/8-20 | 1-1/4 | 5/8" | .715 - .720 | .500 | 45/64 | 13/16 | 55/64 | 50-10 |
| 3/4" | 1-1/16 | 1-35/64 | 3/4" | .860 - .865 | .625 | 13/16 | 1 | 1 | 50-12 |
| 7/8" | 1-3/16-16 | 1-9/16 | 7/8" | .995 - 1.000 | .750 | 7/8 | 1-1/8 | 1-3/16 | 50-14 |
Reducing Elbows
| 주문번호 | Tube O.D. | Thread | A ±1/64 | D +.005/-.010 | E | F ±1/64 | H ±1/64 | J ±1/64 | Part No. |
| 7/8" - 5/8" | 1-3/16-20 - 7/8-20 | 1-9/16 | .875 | .995 - 1.000 | .750 | 7/8" | 1-1/8" | 50-14-10 |
| 주문번호 | Tube O.D. | Thread | K ±1/64 | L +.005/-.010 | M | N ±.010 | O ±1/64 | P ±1/64 | Part No. |
| 7/8" - 5/8" | 1-3/16-20 - 7/8-20 | 1-3/16" | 5/8" | .715 - .720 | .500 | 1-29/64 | 45/64 | 50-14-10 |
