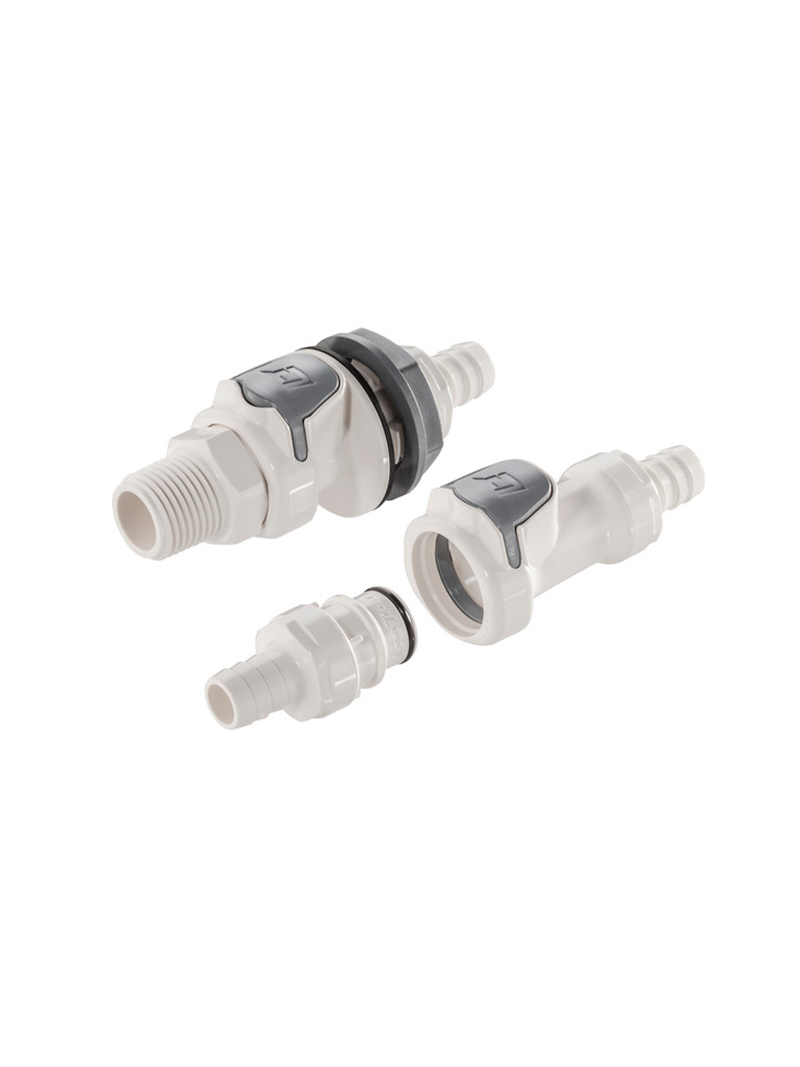

60PS 공기유량 |
|
60PS 물유량 |
 |
60PS 온도유량 |
Q = 분당 갤런 단위 유량
Cv = 평균 유량
ΔP = 커플링 통과 압력 차
S = 액체의 비중
* 유량의 범위
아래 데이터는 LinkTech 커플링의 액체 유량을 나타냅니다. 각각의 커플링 조합은 실온(21°C)에서 테스트 되었습니다.
1. Male Thread Socket
Non-Valved | Valved | Thread Size | Length | Width | Height |
60PS-S1-06 | 60PSV-SE1-06 | 3/8" NPT | 2.78" | 1.36" | 1.44" |
60PS-S1-08 | 60PSV-SE1-08 | 1/2" NPT | 2.93" | 1.36" | 1.44" |
2. In-Line Hose Barb Socket
Non-Valved | Valved | Tube Size | Metric Tube | Length | Width | Height |
60PS-S2-06 | 60PSV-SE2-06 | 3/8" ID | 9.5mm ID | 2.82" | 1.36" | 1.44" |
60PS-S2-08 | 60PSV-SE2-08 | 1/2" ID | 12.7mm ID | 2.92" | 1.36" | 1.44" |
60PS-S2-12 | 60PSV-SE2-12 | 3/4" ID | 19.0mm ID | 2.97" | 1.36" | 1.44" |
3. Panel Mount Hose Barb Socket (Gasket Seal Included)
Non-Valved | Valved | Tube Size | Metric Tube | Length | Width | Height |
60PS-S3-06 | 60PSV-SE3-06 | 3/8" ID | 9.5mm ID | 2.90" | 1.62" | 1.65" |
60PS-S3-08 | 60PSV-SE3-08 | 1/2" ID | 12.7mm ID | 3.07" | 1.62" | 1.65" |
60PS-S3-12 | 60PSV-SE3-12 | 3/4" ID | 19.0mm ID | 3.12" | 1.62" | 1.65" |
4. Panel Mount Hose Barb Elbow Socket (Gasket Seal Included)
Non-Valved | Valved | Tube Size | Metric Tube | Length | Width | Height |
60PS-S22-06 | 60PSV-SE22-06 | 3/8" ID | 9.5mm ID | 2.96" | 1.62" | 1.73" |
60PS-S22-08 | 60PSV-SE22-08 | 1/2" ID | 12.7mm ID | 2.96" | 1.62" | 1.83" |
1. Male Thread Plug
Non-Valved | Valved | Thread Size | Length(nv/v) | Width | Height |
60PS-PE1-06 | 60PSV-PE1-06 | 3/8" NPT | 2.82"/2.92" | 1.14" | 1.00" |
60PS-PE1-08 | 60PSV-PE1-08 | 1/2" NPT | 2.82"/2.92" | 1.14" | 1.00" |
2. In-Line Hose Barb Plug
Non-Valved | Valved | Tube Size | Metric Tube | Length(nv/v) | Width | Height |
60PS-PE2-06 | 60PSV-PE2-06 | 3/8" ID | 9.5mm ID | 1.91"/2.05" | 1.00" | 1.00" |
60PS-PE2-08 | 60PSV-PE2-08 | 1/2" ID | 12.7mm ID | 2.01"/2.15" | 1.00" | 1.00" |
60PS-PE2-12 | 60PSV-PE2-12 | 3/4" ID | 19.0mm ID | 2.01"/2.20" | 1.00" | 1.00" |
3. Panel Mount Hose Barb Plug (Gasket Seal Included)
Non-Valved | Valved | Tube Size | Metric Tube | Length(nv/v) | Width | Height |
60PS-PE3-06 | 60PSV-PE3-06 | 3/8" ID | 9.5mm ID | 2.78"/2.92" | 1.62" | 1.62" |
60PS-PE3-08 | 60PSV-PE3-08 | 1/2" ID | 12.7mm ID | 2.88"/3.02" | 1.62" | 1.62" |
60PS-PE3-12 | 60PSV-PE3-12 | 3/4" ID | 19.0mm ID | 2.93"/3.07" | 1.62" | 1.62" |
4. Panel Mount Hose Barb Elbow Plug (Gasket Seal Included)
Non-Valved | Valved | Tube Size | Metric Tube | Length(nv/v) | Width | Height |
60PS-PE22-06 | 60PSV-PE22-06 | 3/8" ID | 9.5mm ID | 2.86"/3.00" | 1.62" | 1.73" |
60PS-PE22-08 | 60PSV-PE22-08 | 1/2" ID | 12.7mm ID | 2.86"/3.00" | 1.62" | 1.83" |
5. Elbow Hose Barb Plug
Non-Valved | Valved | Tube Size | Metric Tube | Length(nv/v) | Width | Height |
60PS-PE4-06 | 60PSV-PE4-06 | 3/8" ID | 9.5mm ID | 1.98"/2.12" | 1.00" | 1.43" |
60PS-PE4-08 | 60PSV-PE4-08 | 1/2" ID | 12.7mm ID | 1.98"/2.12" | 1.00" | 1.53" |
