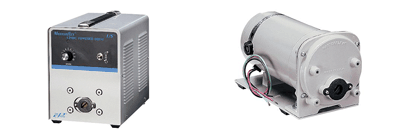

캐비닛 스타일 드라이브

• 이송 유량: 1.2 ~ 2400 mL/min

• 먼 거리에서 유체를 펌프 작업하는데 이상적인 제품입니다.

• 7.9m 깊이 까지의 샘플작업도 가능합니다.

• 양방향 작동 가능 합니다.

• 12 VDC 전원으로 사용 가능합니다.

• 이동 손잡이가 있으면 쉽게 이동이 가능합니다.

• 사용 가능한 펌프 헤드:

Standard

High-Performance

PTFE-Tubing

Easy-Load®

Easy-LoadⅡ

Easy Load 3

간편한 스타일의 드라이브

• 이송 유량: 6 ~ 2700 mA

• 내화학성이 뛰어난 철로 제작된 모터 하우징

• 지속적인 펌프 작업이 필요한 견고한 용도에 이상적인 제품입니다.

• 12 또는 24 VDC 전원으로 사용이 가능합니다.

• OEM 용도에 이상적입니다.

• 아래 펌프 헤드의 적용이 가능합니다.

Standard

Cartridge

PTFE -tubing

PTFE-diaphragm

High-Performance

Easy-Load

Easy-Load Ⅱ

Easy-Load® 3

* 주의 : 하나의 펌프헤드만 사용이 가능하다고 나와 있는 사양 표의 드라이브는 High-Performance나 PTFE 펌프 헤드를 사용할 수는 없습니다.

캐비닛 스타일 드라이브

• 모든 수동 조정키는 앞면에 있습니다.

• 1회전 분압 속도 조절키와 시계방향/전원끔/반시계방향 스위치는 따로 위치합니다.

간편한 스타일의 드라이브

• 드라이브 속도를 바꾸기 위해 입력 전압을 다양하게 할 수 있습니다; 입력 전압의 극을 반대로 하면 모터의 진행방향이 반대로 됩니다.

• 3개의 전선, 16 게이지, 30 cm 길이의 전선에 전원을 연결합니다.

L/S® DC-Powered Drive 사양

Part.No	Cabinet-style drives		Compact drive
	12 VDC		12 VDC		24 VDC
	07533-20	07533-40	07533		07533
			-60	-50	-70	-80
Performance Specifications
Flow Capacity	1.2 ~ 2400 mL/min		6 ~ 2700 mL/min
rpm	20 ~ 90	100 ~ 500	540	100		570
Number of heads accepted	2	1		2		1
Max torque	13 kg-cm	6.5 kg-cm		13 kg-cm		6.5 kg-cm
Reversible	Yes
Electrical Specification
Voltage	10.8 ~ 13.2		1.5 ~ 15	1 ~ 15	1 ~ 30	1.7 ~ 30
Current	3 A		5.7 A	3.2 A	1.5 A	2.6 A
Motor type	Permanent-magnet DC
Motor size	37 W
Motor/Speed control type	1-turn potentiometer		Not applicable
Speed regulation (repeatability)	±5%
Soft-start/Electric brake	Not applicable
Physical Specifications
Housing material	Painted steel		Painted steel
IP rating	IP21		IP52
Agency listings	CE
Operating temperature	0 ~ 40°C
Storage temperature	-25 ~ 65°C
Dimensions (L x W x H)	27.9 x 16.5 x 22.2 cm		21.6 x 9.7 x 11.7
Shipping weight	5.3 kg		4.1 kg

Part.No

Cabinet-style drives

Compact drive

12 VDC

12 VDC

24 VDC

07533-20

07533-40

07533

07533

Performance Specifications

Flow Capacity

1.2 ~ 2400 mL/min

6 ~ 2700 mL/min

rpm

20 ~ 90

100 ~ 500

540

100

570

Number of heads accepted

2

1

2

1

Max torque

13 kg-cm

6.5 kg-cm

13 kg-cm

6.5 kg-cm

Reversible

Yes

Electrical Specification

Voltage

10.8 ~ 13.2

1.5 ~ 15

1 ~ 15

1 ~ 30

1.7 ~ 30

Current

3 A

5.7 A

3.2 A

1.5 A

2.6 A

Motor type

Permanent-magnet DC

Motor size

37 W

Motor/Speed control type

1-turn potentiometer

Not applicable

Speed regulation (repeatability)

±5%

Soft-start/Electric brake

Not applicable

Physical Specifications

Housing material

Painted steel

Painted steel

IP rating

IP21

IP52

Agency listings

CE

Operating temperature

0 ~ 40°C

Storage temperature

-25 ~ 65°C

Dimensions (L x W x H)

27.9 x 16.5 x 22.2 cm

21.6 x 9.7 x 11.7

Shipping weight

5.3 kg

4.1 kg
