Straight

JACO Features and Materials 피팅 주문 방법 10 Male Connector 15 Union & Reducing Union Connectors 20 Bulkhead Unions 25 Female Connectors 40 Male Elbows 45 Female Elbows 50 Union & Reducing Elbows 60 Male Branch Tees 70 Union & Reducing Tees 75 Male Run Tees P PN BLD CV B

Johnguest

	PP	NK	NN	WN	BN	HDPE
1/16"	iE-01-1N	iE-01-7N	iE-01-3N	iE-01-3W	iE-01-3B	iE-01-4N
3/32"	iE-02-1N	iE-02-7N	iE-02-3N	iE-02-3W	iE-02-3B	iE-02-4N
1/8"	iE-03-1N	iE-03-7N	iE-03-3N	iE-03-3W	iE-03-3B	iE-03-4N
5/32"	iE-04-1N	iE-04-7N	iE-04-3N	iE-04-3W	iE-04-3B	iE-04-4N
3/16"	iE-05-1N	iE-05-7N	iE-05-3N	iE-05-3W	iE-05-3B	iE-05-4N
1/4"	iE-06-1N	iE-06-7N	iE-06-3N	iE-06-3W	iE-06-3B	iE-06-4N
5/16"	iE-08-1N	iE-08-7N	iE-08-3N	iE-08-3W	iE-08-3B	iE-08-4N
3/8"	iE-10-1N	iE-10-7N	iE-10-3N	iE-10-3W	iE-10-3B	iE-10-4N
1/2"	iE-13-1N	iE-13-7N	iE-13-3N	iE-13-3W	iE-13-3B	iE-13-4N
5/8"	iE-16-1N	iE-16-7N	iE-16-3N	iE-16-3W	iE-16-3B	iE-16-4N
3/4"	iE-19-1N	iE-19-7N	iE-19-3N	iE-19-3W	iE-19-3B	iE-19-4N
1"	iE-25-1N	iE-25-7N	iE-25-3N	iE-25-3W	iE-25-3B	iE-25-4N

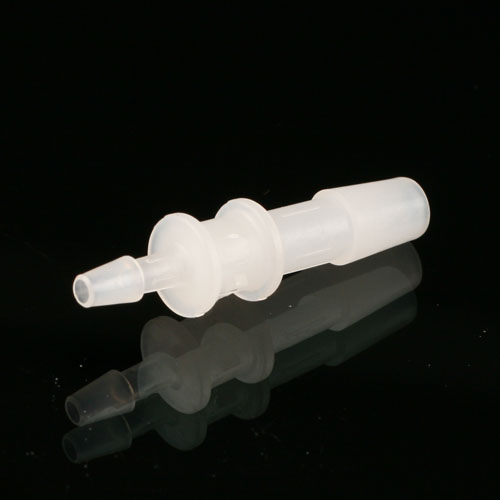

	PP	NK	NN	WN	BN	HDPE
3/32"•1/16"	iR-0201-1N	iR-0201-7N	iR-0201-3N	iR-0201-3W	iR-0201-3B	iR-0201-4N
1/8"•1/16"	iR-0301-1N	iR-0301-7N	iR-0301-3N	iR-0301-3W	iR-0301-3B	iR-0301-4N
1/8"•3/32"	iR-0302-1N	iR-0302-7N	iR-0302-3N	iR-0302-3W	iR-0302-3B	iR-0302-4N
5/32"•1/16"	iR-0401-1N	iR-0401-7N	iR-0401-3N	iR-0401-3W	iR-0401-3B	iR-0401-4N
5/32"•3/32"	iR-0402-1N	iR-0402-7N	iR-0402-3N	iR-0402-3W	iR-0402-3B	iR-0402-4N
5/32"•1/8"	iR-0403-1N	iR-0403-7N	iR-0403-3N	iR-0403-3W	iR-0403-3B	iR-0403-4N
3/16"•1/16"	iR-0501-1N	iR-0501-7N	iR-0501-3N	iR-0501-3W	iR-0501-3B	iR-0501-4N
3/16"•3/32"	iR-0502-1N	iR-0502-7N	iR-0502-3N	iR-0502-3W	iR-0502-3B	iR-0502-4N
3/16"•1/8"	iR-0503-1N	iR-0503-7N	iR-0503-3N	iR-0503-3W	iR-0503-3B	iR-0503-4N
3/16"•5/32"	iR-0504-1N	iR-0504-7N	iR-0504-3N	iR-0504-3W	iR-0504-3B	iR-0504-4N
1/4"•1/16"	iR-0601-1N	iR-0601-7N	iR-0601-3N			iR-0601-4N
1/4"•3/32"	iR-0602-1N	iR-0602-7N	iR-0602-3N			iR-0602-4N
1/4"•1/8"	iR-0603-1N	iR-0603-7N	iR-0603-3N	iR-0603-3W	iR-0603-3B	iR-0603-4N
1/4"•5/32"	iR0604-1N	iR0604-7N	iR0604-3N	iR0604-3W	iR0604-3B	iR0604-4N
1/4"•3/16"	iR0605-1N	iR0605-7N	iR0605-3N	iR0605-3W	iR0605-3B	iR0605-4N
5/16"•5/32"	iR0804-1N	iR0804-7N	iR0804-3N			iR0804-4N
5/16"•1/4"	iR0806-1N	iR0806-7N	iR0806-3N	iR0806-3W	iR0806-3B	iR0806-4N
3/8"•1/8"	iR1003-1N	iR1003-7N	iR1003-3N			iR1003-4N
3/8"•5/32"	iR1004-1N	iR1004-7N	iR1004-3N			iR1004-4N
3/8"•1/4"	iR1006-1N	iR1006-7N	iR1006-3N	iR1006-3W	iR1006-3B	iR1006-4N
3/8"•5/16"	iR1008-1N	iR1008-7N	iR1008-3N	iR1008-3W	iR1008-3B	iR1008-4N
1/2"•1/4"	iR1306-1N	iR1306-7N	iR1306-3N	iR1306-3W	iR1306-3B	iR1306-4N
1/2"•5/16"	iR1308-1N	iR1308-7N	iR1308-3N	iR1308-3W	iR1308-3B	iR1308-4N
1/2"•3/8"	iR1310-1N	iR1310-7N	iR1310-3N	iR1310-3W	iR1310-3B	iR1310-4N
5/8"•1/4"	iR1606-1N	iR1606-7N	iR1606-3N	iR1606-3W	iR1606-3B	iR1606-4N
5/8"•5/16"	iR16-08-1N	iR16-08-7N	iR16-08-3N	iR16-08-3W	iR16-08-3B	iR16-08-4N
5/8"•3/8"	iR1610-1N	iR1610-7N	iR1610-3N	iR1610-3W	iR1610-3B	iR1610-4N
5/8"•1/2"	iR16-13-1N	iR16-13-7N	iR16-13-3N	iR16-13-3W	iR16-13-3B	iR16-13-4N
3/4"•3/8"	iR1910-1N	iR1910-7N	iR1910-3N	iR1910-3W	iR1910-3B	iR1910-4N
3/4"•1/2"	iR-1913-1N	iR-1913-7N	iR-1913-3N	iR-1913-3W	iR-1913-3B	iR-1913-4N
3/4"•5/8"	iR-1916-1N	iR-1916-7N	iR-1916-3N	iR-1916-3W	iR-1916-3B	iR-1916-4N
1"•1/2"	iR-2513-1N	iR-2513-7N	iR-2513-3N	iR-2513-3W	iR-2513-3B	iR-2513-4N
1"•5/8"	iR-2516-1N	iR-2516-7N	iR-2516-3N	iR-2516-3W	iR-2516-3B	iR-2516-4N
1"•3/4"	iR-2519-1N	iR-2519-7N	iR-2519-3N	iR-2519-3W	iR-2519-3B	iR-2519-4N

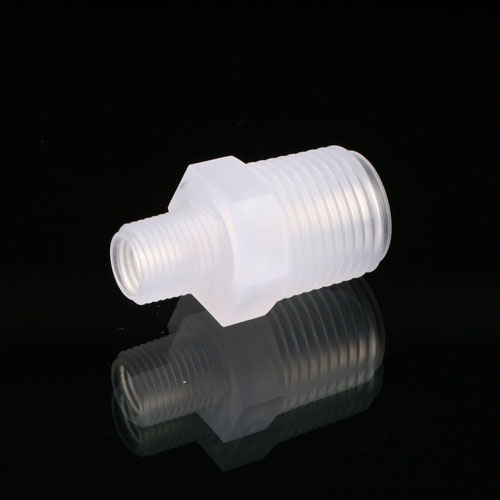

	PP	NK	NN	HDPE
1/16" NPT	NR06U01-1N	NR06U01-7N	NR06U01-3N	NR06U01-4N
1/4-28 UNF
1/8" NPT	NR0301-1N	NR0301-7N	NR0301-3N	NR0301-4N
1/16" NPT
1/4" NPT	NR0603-1N	NR0603-7N	NR0603-3N	NR0603-4N
1/8" NPT
3/8" NPT	NR1003-1N	NR1003-7N	NR1003-3N	NR1003-4N
1/8" NPT
3/8" NPT	NR1006-1N	NR1006-7N	NR1006-3N	NR1006-4N
1/4" NPT
1/2" NPT	NR1303-1N	NR1303-7N	NR1303-3N	NR1303-4N
1/8" NPT
1/2" NPT	NR1306-1N	NR1306-7N	NR1306-3N	NR1306-4N
1/4" NPT
1/2" NPT	NR1310-1N	NR1310-7N	NR1310-3N	NR1310-4N
3/8" NPT
1" NPT	NR2519-1N	NR2519-7N	NR2519-3N	NR2519-4N
3/4" NPT

	PP	NK	NN	HDPE
10-32 UNF	NE32U-1N	NE32U-7N	NE32U-3N	NE32U-4N
10-32 UNF Taper	NE32T-1N	NE32T-7N	NE32T-3N	NE32T-4N
1/8" NPT	NE03-1N	NE03-7N	NE03-3N	NE03-4N
1/4" NPT	NE06-1N	NE06-7N	NE06-3N	NE06-4N
3/8" NPT	NE10-1N	NE10-7N	NE10-3N	NE10-4N
1/2" NPT	NE13-1N	NE13-7N	NE13-3N	NE13-4N
3/4" NPT	NE19-1N	NE19-7N	NE19-3N	NE19-4N
1" NPT	NE25-1N	NE25-7N	NE25-3N	NE25-4N

NPT	PP	NK	NN	HDPE
1/16"	PG-01-1N	PG-01-7N	PG-01-3N	PG-01-4N
3/32"	PG-02-1N	PG-02-7N	PG-02-3N	PG-02-4N
1/8"	PG-03-1N	PG-03-7N	PG-03-3N	PG-03-4N
5/32"	PG-04-1N	PG-04-7N	PG-04-3N	PG-04-4N
3/16"	PG-05-1N	PG-05-7N	PG-05-3N	PG-05-4N
1/4"	PG-06-1N	PG-06-7N	PG-06-3N	PG-06-4N
3/8"	PG-10-1N	PG-10-7N	PG-10-3N	PG-10-4N
1/2"	PG-13-1N	PG-13-7N	PG-13-3N	PG-13-4N

	PP	NK	NN	HDPE
5 mm	PG5MM-1N	PG5MM-7N	PG5MM-3N	PG5MM-4N
6mm	PG6MM-1N	PG6MM-7N	PG6MM-3N	PG6MM-4N
10-32 UNF	PG32U-1N	PG32U-7N	PG32U-3N	PG32U-4N
10-32 UNF Taper	PG32T-1N	PG32T-7N	PG32T-3N	PG32T-4N
1/4-28 UNF	PG06U-1N	PG06U-7N	PG06U-3N	PG06U-4N
1/16" NPT	PG01-1N	PG01-7N	PG01-3N	PG01-4N
1/8" NPT	PG03-1N	PG03-7N	PG03-3N	PG03-4N
1/4" NPT	PG06-1N	PG06-7N	PG06-3N	PG06-4N
3/8" NPT	PG10-1N	PG10-7N	PG10-3N	PG10-4N
1/2" NPT	PG13-1N	PG13-7N	PG13-3N	PG13-4N
3/4" NPT	PG19-1N	PG19-7N	PG19-3N	PG19-4N
1" NPT	PG25-1N	PG25-7N	PG25-3N	PG25-4N

Straight
